KutchCAD, quantity takeoff software that complements estimating and management tools
KutchCAD generates quantities and estimates by reproducing and automating the traditional workflow on plans. Reduce manual measurement sheets, repeated checks and continual revisions. In KutchCAD, changing a plan automatically changes its quantities. And because KutchCAD synchronises with your estimating and management software, estimates, technical specifications and 45-1 descriptive notices are generated from the plans.
Some KutchCAD features
KutchCAD offers modelling and automated quantity takeoff tools for the situations building professionals encounter when preparing tenders. These include:
DIGITAL MODELS
Reconstruct a BIM model from imported DXF, DWG, PDF, scanned plans and surveys, or draw it yourself. Associate project elements with work items for the pricing schedule. Quantities derive from drawn dimensions and calculation formulas.
LOCATION PLANS &
SITE PROGRESS PLANS
Help installation teams by highlighting the work to be carried out. KutchCAD also produces site progress plans.
TIMBER FRAME MODELLER
Place purlins, rafters and battens across roof slopes using section and spacing settings. Add valleys and hips individually. Model traditional timber frames in sections or 3D using stored components such as tie beams, king posts and braces.
PLUMBING & ELECTRICAL
Position equipment and connect it with lines. Estimate work by unit or direct cost to measure conduit and cable lengths. Save room specifications in the library to generate an estimate without drawing 2D symbols.
FACADE QUANTITY TAKEOFF FROM PHOTOS

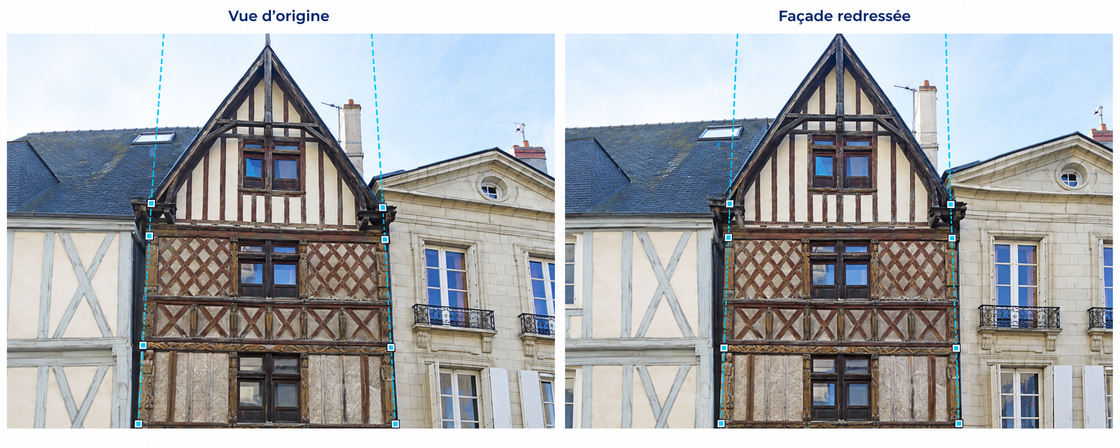

For rendering, painting and cladding, transform perspective photographs into scaled elevation views to measure areas. Tools also reconstruct a building’s complete unfolded facade.
SYNCHRONISATION WITH ESTIMATING AND MANAGEMENT SOFTWARE

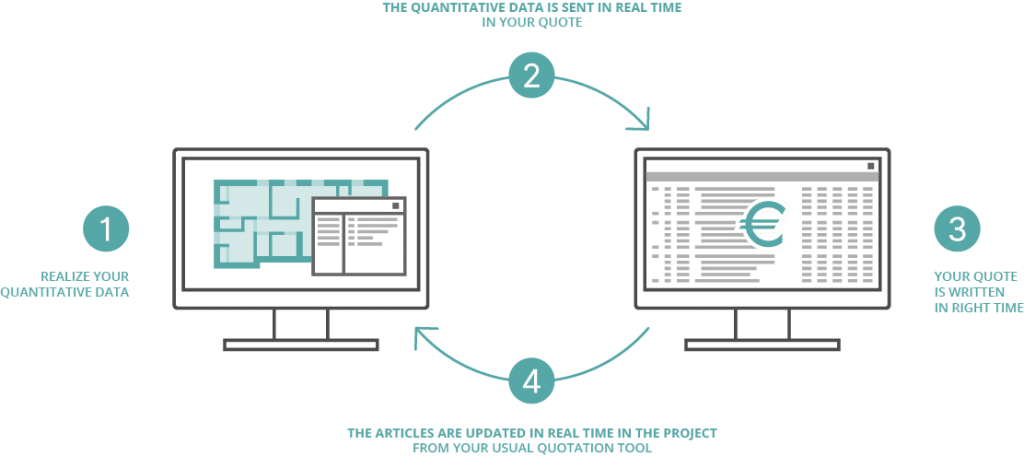

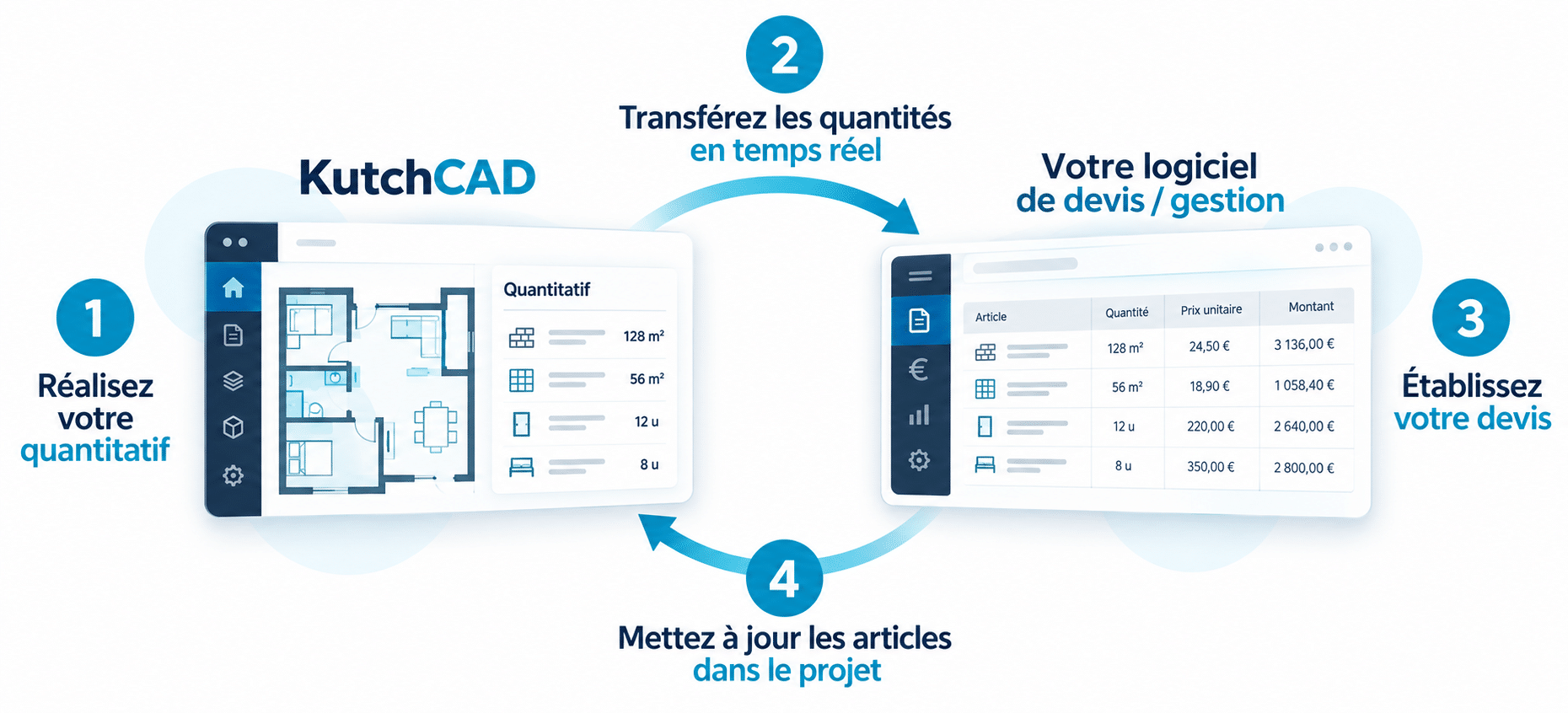

A direct database connection between KutchCAD and your estimating software avoids import and export filters. Each database communicates with the other so that work items created or changed in KutchCAD update in the estimating software, and vice versa. This direct link avoids duplicate entry and supports consistent work item references.
TENDER AUTOMATION
KutchCAD’s direct link with SPIGAO lets you:
• Find and select tenders matching your activity and location
• Import the pricing schedule directly
• Measure quantities
• Quantify projects by dragging and dropping work items
• Compare calculated quantities with the tender schedule and publish your submission.
Each tender can then become a project tracking and invoicing workflow.
WRITTEN DOCUMENTS
Pricing schedules, technical specifications and descriptive notices are integrated into KutchCAD. The estimate becomes another project view, alongside 2D and 3D. Create libraries in KutchCAD or use those from connected estimating software.
Who is KutchCAD for?
Drawing, modelling and synchronisation with estimating software make KutchCAD suitable for quantity surveyors, engineering firms, general contractors and tradespeople.
QUANTITY SURVEYORS
& ENGINEERING FIRMS
Support architects, project managers and owners with technical and financial analysis, from detailed specifications and quantities to construction management and progress plans.
- Import digital models created by third parties.
- Import DWG, DXF, SKP or IFC projects, or redraw from PDFs and scanned BMP/JPG plans, scaled 1:1 in a few clicks.
- Create work item drawings, with or without locations.
- Organise estimates by work package, chapter, section and item.
- Automatically generate quantity schedules and technical specifications.
- Customise written document layouts.
GENERAL CONTRACTORS
& TRADESPEOPLE
Prepare quantities and estimates from scanned or imported plans, connected automatically to your estimating software to avoid duplicate entry and streamline tender responses.
- Import DWG, DXF, SKP or IFC projects, or redraw from PDFs and scanned BMP/JPG plans with 1:1 scaling.
- Survey buildings directly using a Bluetooth-connected laser meter or theodolite.
- Produce construction and handover drawings.
- Exchange data in real time with estimating software to generate estimates and direct costs.
- Create construction schedules directly.
TEACHERS
& STUDENTS
Use a comprehensive tool with features covering building and construction professions and their practical challenges.
- Are you a student or teacher? Get 1 year of FREE exclusive access to EDICAD software and services, including KutchCAD, for educational use!
Video presentation of features and automated quantity takeoff
This video introduces the main quantity takeoff features of ArchiTECH.PC and KutchCAD.
For a complete, free and personalised KutchCAD demonstration, showing how the software can meet your needs, contact us today.
